Features

– The RX57 to RX107 single-stage gear unit series offers compact, space-saving solutions for high output speeds

– Thanks to the die-cast aluminum design, multi-stage gear units R07, R17 and R27 are ideal for use as satellite drives and for use in light machine constructions

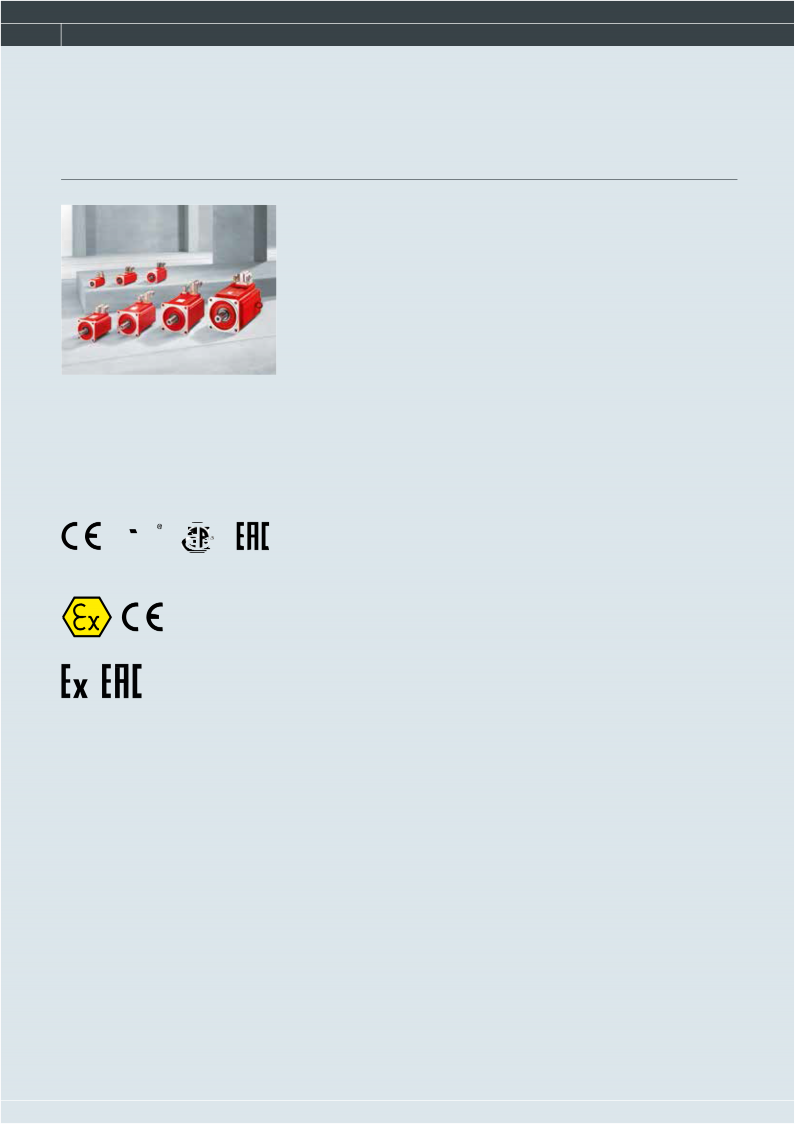

Synchronous servo gearmotors

Asynchronous servo gearmotors with DRL.. motor

with CMP.. motor (high dynamics)

with CM.. motor (high inertia)

Gear unit size

RX57 – RX77

R07 – R107

RX57 – RX107

R27 – R107

RX57 – RX107

R17——R167

Gear ratios

1.3 –

3.21 –

1.3 –

3.37 –

1.3 – 8.23

3.37 – 255.71

i

7.63

216.54

8.23

216.28

Torque range MaDyn

6.6 –

12 –

63 –

45 –

63 – 830

45 – 18 000

Nm

1 120

4 360

830

4 300

Rotational clearance (/R option)

`

–

5 – 14

–

5 – 14

–

5 – 14

Features

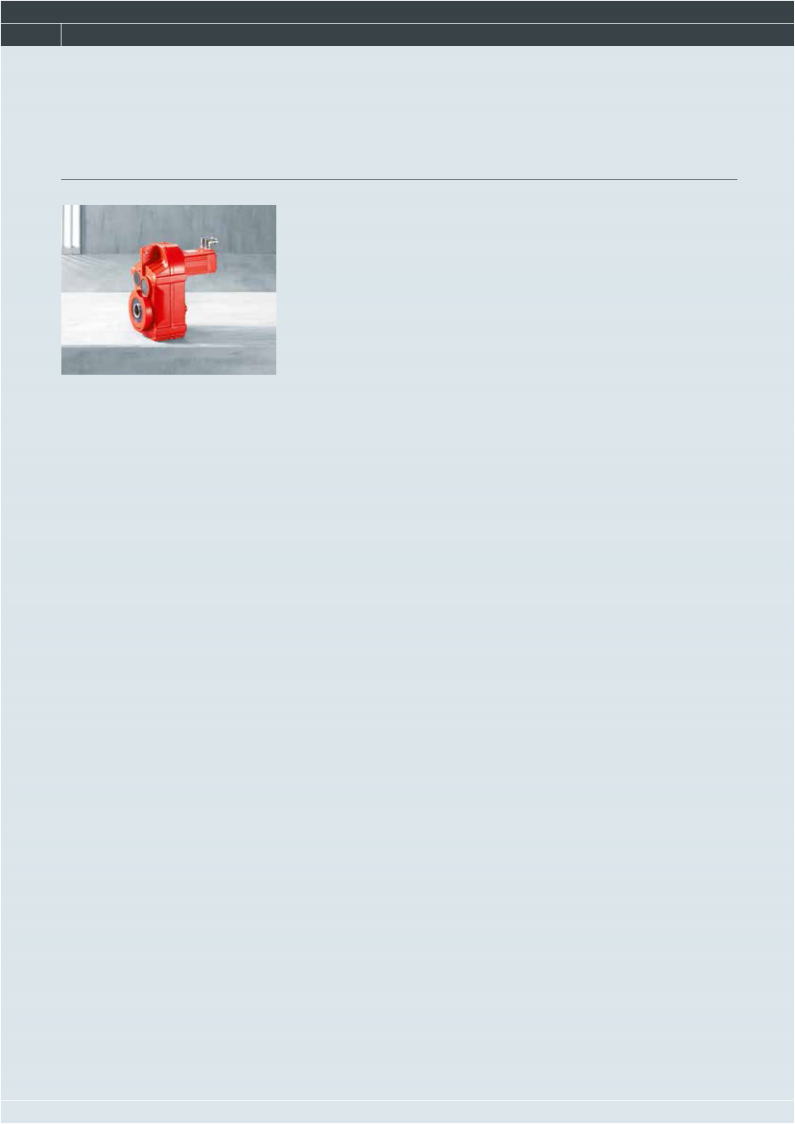

– This compact gearmotor not only excels by its performance but also by its structural properties

Synchronous servo gearmotors

Asynchronous servo gearmotors with DRL.. motor

with CMP.. motor (high dynamics)

with CM.. motor (high inertia)

Gear unit size

F27 – F107

F27 – F107

F27 – F157

Gear ratios i

3.77 - 276.77

3.77 - 276.77

3.77 - 276.77

Torque range MaDynNm

15 – 8 860

67 – 8 860

87 – 18 000

Rotational clearance (/R option)

`

5 – 12

5 – 12

5 – 12

Features

– Helical-bevel gear units from SEW-EURODRIVE provide a high degree of efficiency in both torque directions and at any input speed

– The gearing is designed for high endurance and makes for a high-torque, wear-free drive

– The remarkably high efficiency of the helical-bevel gearmotors of SEW-EURODRIVE makes them energy savers

– The long maintenance-free service life is another reason why they can be used with AC asynchronous motors, asynchronous and synchronous servomotors in every application

Synchronous servo gearmotors

Asynchronous servo gearmotors with DRL.. motor

with CMP.. motor (high dynamics)

with CM.. motor (high inertia)

Gear unit size

K37 – K107

NEW:K..19 – K..49

K37 – K107

K37 – K187

NEW:

K..19 – K..49

Gear ratios

3.98 –

2.8 –

3.98 – 176.05

3.98 – 179.86

2.8 – 75.20

i

174.19

75.0

Torque range MaDyn

15 –

16 –

63 – 9 090

125 – 50 000

54 – 605

Nm

9 090

605

Rotational clearance (/R option)

`

5 – 13

–

5 – 13

5 – 13

–

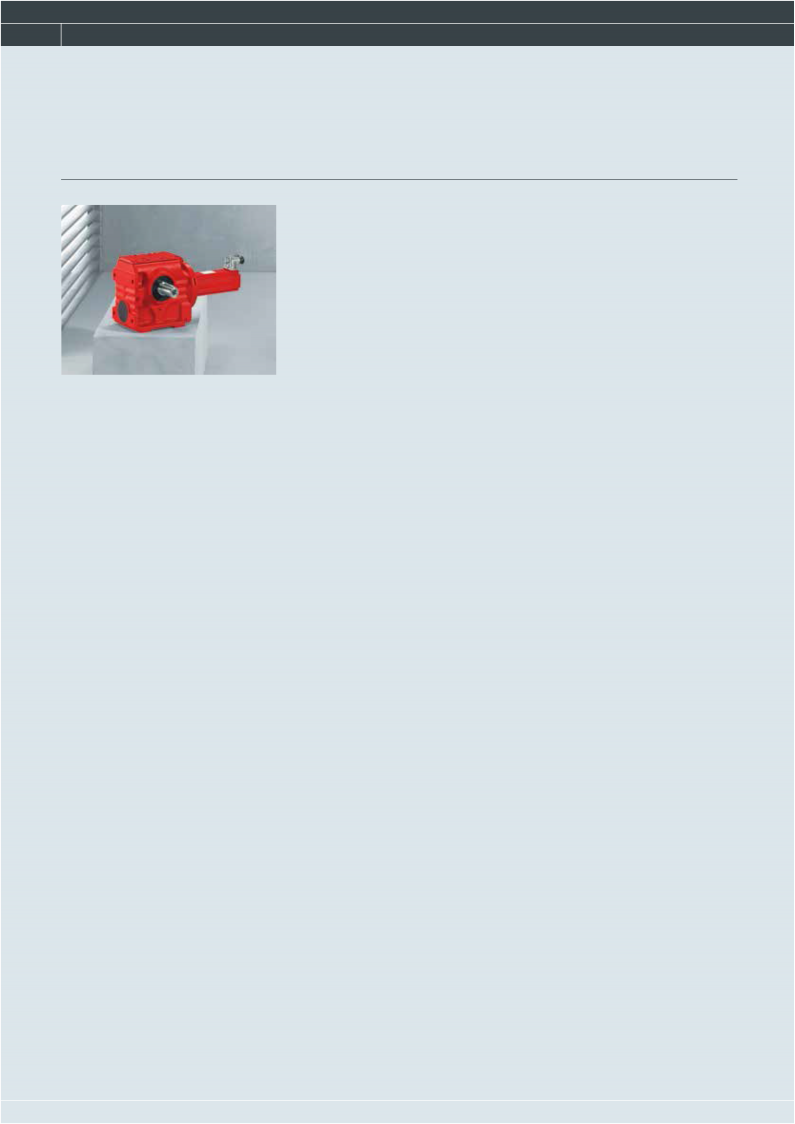

Features

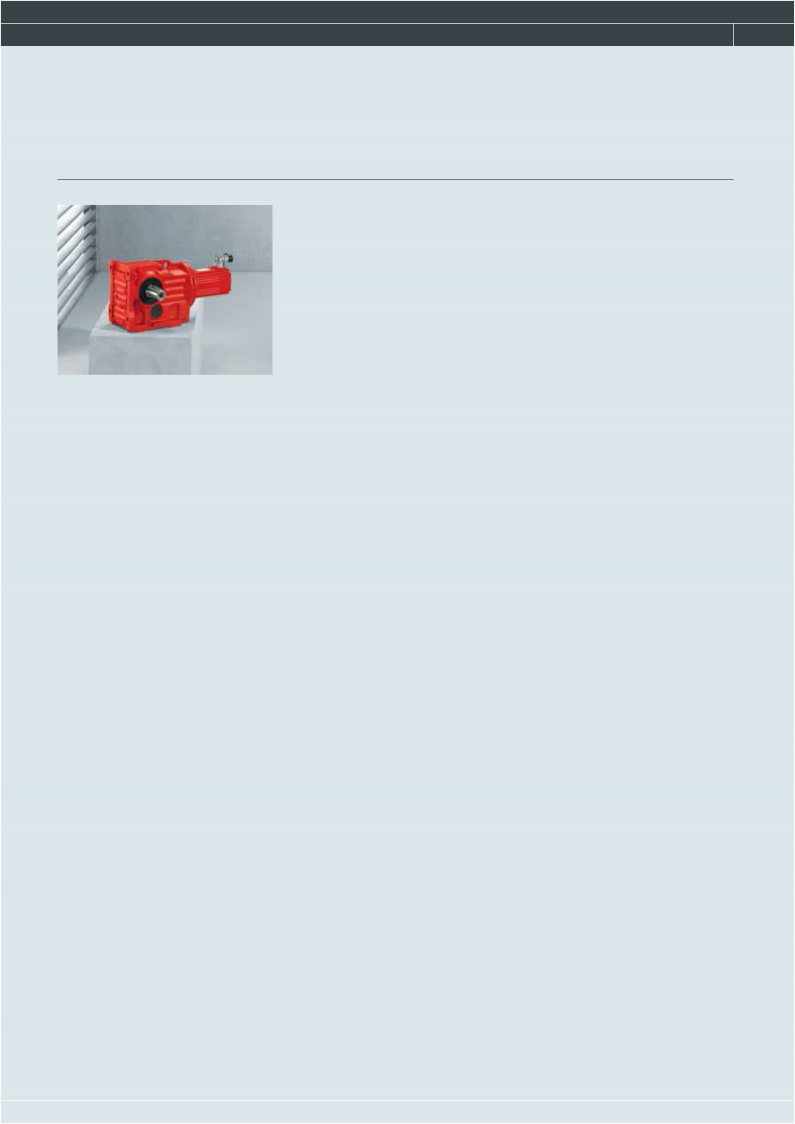

– Particularly space-saving when used as angular drive

– The attenuation characteristics are another advantage

– Torque shocks are attenuated as the power transmission to the drive shaft is linear on the input shaft

– The noise level of this type is very low, even when operating the unit at full capacity

– Can be used in stage lifts, for example

Synchronous servo gearmotors

Asynchronous servo gearmotors with DRL.. motor

with CMP.. motor (high dynamics)

with CM.. motor (high inertia)

Gear unit size

S37 – S67

S37 – S67

S37 – S67

Gear ratios i

3.97 – 75.06

6.80 – 75.06

3.97 – 75.06

Torque range MaDynNm

18 – 580

43 – 480

32 – 480

Features

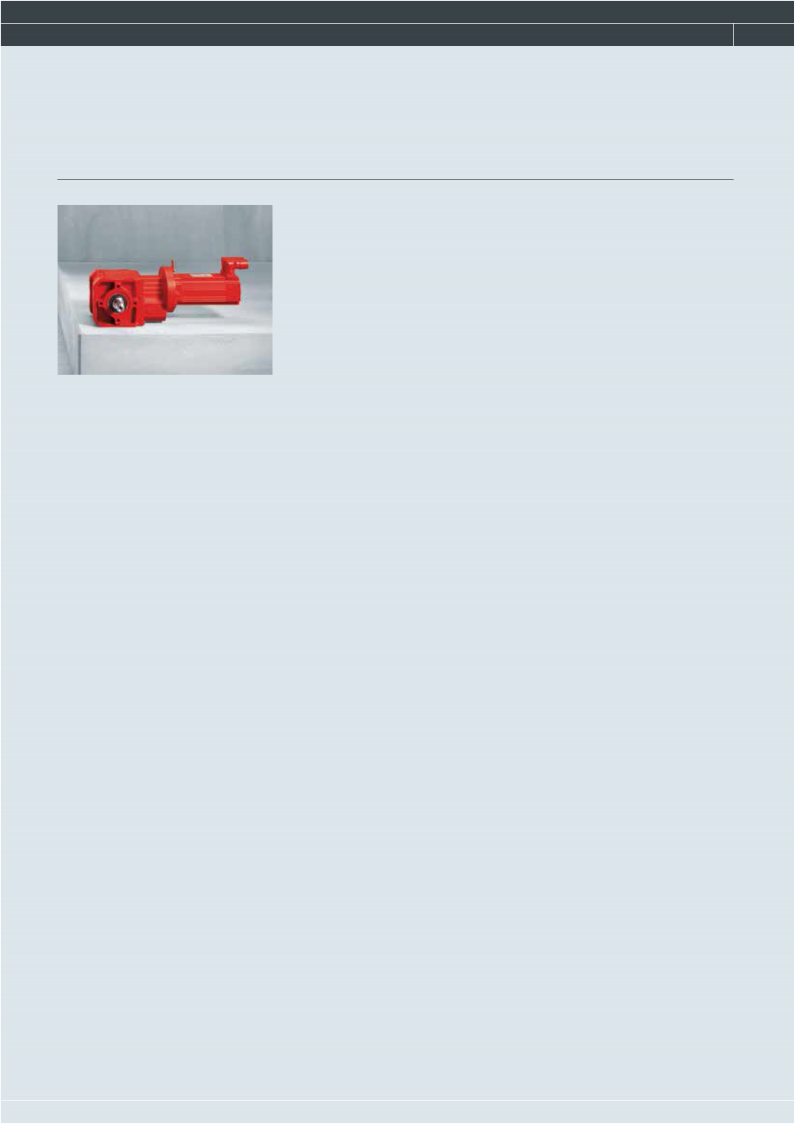

– SPIROPLANright-angle servo gearmotors with directly mounted synchronous CMP.. servomotor are extremely efficient, quiet, and offer customers the greatest possible flexibility

– SPIROPLANright-angle gear units W37 / W47 achieve high speeds at smallest gear ratios

– Wear-free gearing minimizes friction losses and optimize the mechanical efficiency

– Areas of application: Ideal drives for simple positioning or conveyor applications

– Gear unit designs:

- Foot/flange-mounted design

- B5 flange

- B14 flange

- Solid shaft / hollow shaft

- Directly mounted servomotor

- Adapter mounting

Synchronous servo gearmotors

Asynchronous servo gearmotors with DRL.. servomotor

with CMP.. motor (high dynamics)

with CM.. motor (high inertia)

Gear unit size

W10 – W47

W37 – W47

W37 – W47

Gear ratios i

3.2 – 75

3.2 – 51.12

3.2 – 74.98

Torque range MaDynNm

11 – 215

49 – 215

16 – 215

Gear unit

With CMP.. motor (high dynamics)

Gear unit sizes

Torque range MaDynNm

Planetary servo gearmotors PS.F121 – PS.F922

15 – 4 200

Helical-bevel servo gearmotors BS.F202 – BS.F802

15 – 1 680

Helical servo gearmotors RX57 – RX107

6.6 – 910

Helical servo gearmotors R07 – R107

12 – 4 360

Parallel-shaft helical servo gearmotors F27 – F107

15 – 8 860

部分伺服齿轮电动机K . .19 - K . . 49

16 – 605

部分伺服齿轮电动机K . .37 – K..107

15 – 9 090

Helical-worm servo gearmotors S37 – S67

18 – 580

SPIROPLANright-angle servo gearmotors W10 – W47

12 – 215
