We also provide a modular motor concept for dynamic and precise servo applications. Choose the best缝制Euroodrive.servomotorsfor your application from three synchronous and one asynchronous series: compact, low-inertia and powerful. Many engine sizes and lengths guarantee a wide range of applications and deliver reliable standstill torques.

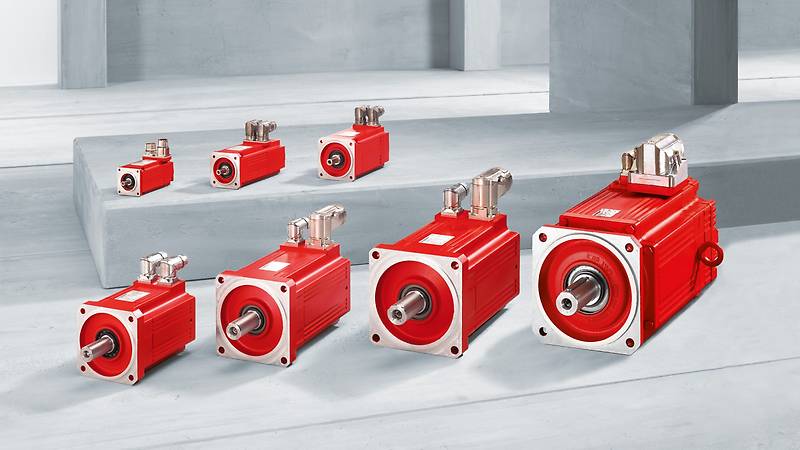

CMP.. series Sew Eurodrive synchronous servomotors
The length-optimized缝制Euroodrive.synchronous servomotors CMP seriesoffer precision, high dynamic characteristics and power in a particularly compact design. 7 high-performance sizes cover peak torques up to 320 Nm and can be used in the tightest of spaces.
Highly dynamics servomotors with a compact design: for use in the tightest spaces
我们的CMP ..一系列同步伺服电机可以适应高负荷或最高的动态要求。无论是在食品和饮料行业还是建筑，汽车或木材产业：这些同步伺服电机都可以使用任何地方实现快速循环时间或者轻松纯正地移动最重的负载。由于其优化的长度，您可以使用CMP ..电机即使在最紧密的空间。
高度动态的CMP ..伺服电动机循环我们的伺服电机：它们提供0.5 nm至95nm的静止转矩，7个电机尺寸，共31个电机等级。
最先进的绕组和磁铁技术使SEW EURODRIVE伺服电机在惯性中极低，即使它们是针对性能的优化。结果是具有最高动态特性的电机系统。
As the largest motor in the tried and tested CMP.. series, the CMP112 rounds out the existing range of highly dynamic synchronous servomotors in the upper part of the power range. With torques of up to 320 Nm. It is optionally available with a “BY” holding brake with an increased working capacity.
CM.. series Sew Eurodrive synchronous servomotors
The缝制Euroodrive.synchronous servomotor CM seriesfor highly dynamic applications. High performance, precision and reliability are the trademarks of the CM.. series. 3 sizes allow for maximum torques up to 238 Nm.
Servomotors with very high power densities: For highly dynamic applications
动态，能够承受高扭矩和最佳控制特性。我们的CM ..系列同步伺服电机是各种应用条件的理想选择。简单的瓶子控制或二级包装任务对我们的伺服电机没有问题。
This series can position objects of virtually any inertia value with precision and accuracy. Regardless of the application. They are as effective for equipping a gantry robot as for a stacker crane.
With 3 motor sizes, each with 3 different lengths (4 lengths for the largest size), our servomotors cover a standstill torque range of 5 Nm to 68 Nm.
Equipped with high-energy NdFeB magnets, these units can help your system achieve excellent overload behavior of 400% of the standstill current. With us, that comes standard. The state-of-the-art magnetic circuit technology also ensures high true-running accuracy and low torque ripple (cogging).
诸如Hiperface编码器或高扭矩工作制动器的选项使这些单元适用于您的特定应用。

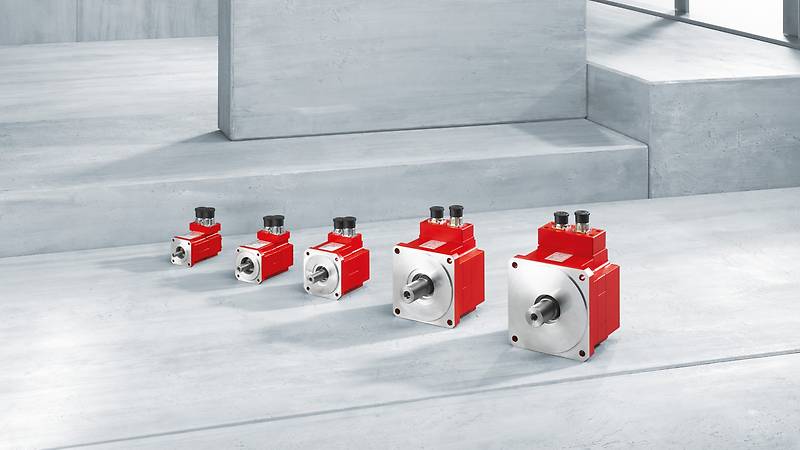

CMDV.. series Sew Eurodrive synchronous servomotors
Our compact缝制Euroodrive.synchronous servomotors CMDV series. They have been designed and optimized for direct motor mounting. Even with their extremely compact designs, the 5 motor sizes produce standstill torques of 0.25 Nm to 32.0 Nm.
Compact servomotors: for direct mounting in very small installation spaces
Rugged bearings and a low-vibration design – these compact Sew Eurodrive servomotors are the ideal devices for applications with limited installation space and for all directly driven servo applications. The innovative design of the synchronous servomotors, including the latest in winding and magnet technology, offers a wide variety of standstill torques as well as high overload capacities.
The standstill torques range from 0.25 Nm to 32.0 Nm, with up to a six-fold overload capacity. 5 compact motor sizes in a convection-cooled design without a housing.

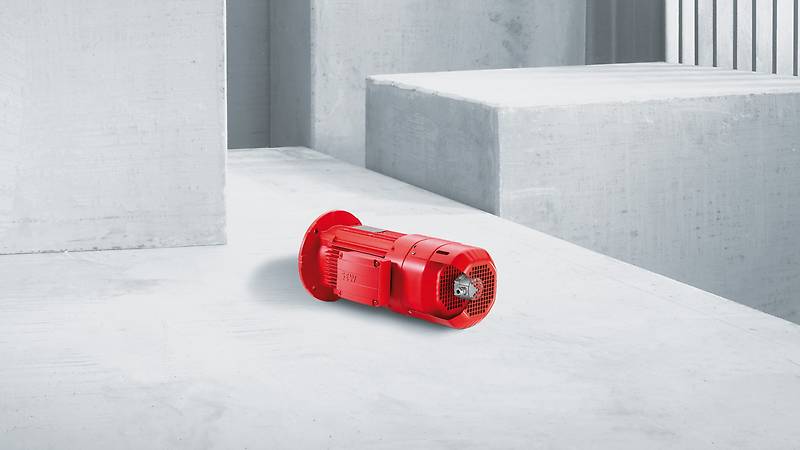

DRL.. series Sew Eurodrive asynchronous servomotors
缝制Euroodrive.asynchronous servomotors是用于供应系统/逆变器操作的经典交流异步电机之间的链路和具有永磁体的高动态同步伺服电机。
High rated torques and suitable for high loads
当必须以可靠的方式控制异步伺服电机时，异步伺服电机特别适用于相对于电动机轴的高外部质量矩阵。
The design and dimensioning are of such a high quality that dynamic overload values of currently up to 350% can be reached for a short time. The overload capacity is divided into two dynamics packages.
The DRL.. series also has the required torque. With its four speed classes and a high-resolution sine/cosine encoder, a high speed quality is achieved – even at low speeds. Our asynchronous servomotor also allows you to benefit from many additional features of the modular motor system of the DR.. series.

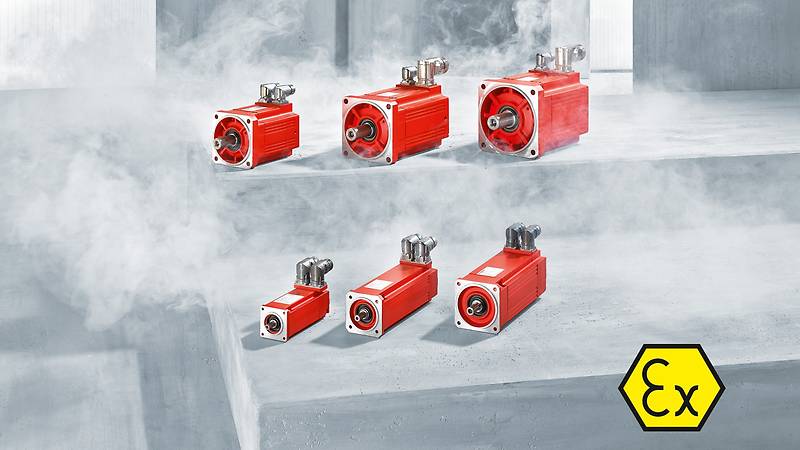

CMP.. series Sew Eurodrive explosion-proof servomotors
为您的系统添加精度和安全性缝制Euroodrive.explosion-proof servomotors; ATEX-compliant motors can be used in environments with explosive air/gas or air/dust mixtures according to category 3.
Safe motors for applications in potentially explosive atmospheres: ATEX-compliant servomotors
在我国实现我们的伺服驱动技术y explosive areas! Precision, dynamics and performance in a particularly compact design. Potentially explosive environments are no problem with our servomotors.
Choose the right ATEX-compliant servomotor from a range of 6 sizes, CMP.. 40 to 100. Torque range from 0.5 Nm up to 47Nm standstill torque. Safe design and additional protective measures meet requirements according to EU Directive 94/9/EC (ATEX), or as of April 20, 2016 of the EU Directive 2014/34/EU (ATEX). They are also available with different protection types depending on the atmosphere, i.e. gas or dust.
In terms of their safety requirements, the servomotors comply with equipment group II. In simple terms: You can use these category 3 explosion-proof motors in gas zone 2 or dust zone 22.
