REXNORD - MARBETT - MCC
<先前Rexnord航空母舰Chains|产品index|下一个rexnord圆顶链>
BSM 2755的经典链轮
KU2755 T10 S40 |
774.18.54 |
10 |
40 |
258.9 |
274 |
42 |
KU2755 T10 R40 |
774.18.55 |
10 |
40 |
258.9 |
274 |
42 |
KU2755 T10 R50 |
774.18.56 |
10 |
50 |
258.9 |
274 |
42 |
KU2755 T10 S50 |
774.17.40 |
10 |
50 |
258.9 |
274 |
42 |
Rexnord has a wide variety of Plate Top and Gripper chains. The roller chain based Plate Top is developed for greater loading capacity and permits even higher speeds and longer runs than slatband chains. The roller based Gripper is perfect for product elevating, lowering, rinsing, sterilizing and inverting, by means of soft rubber gripper elements.
The base chain is made of steel or stainless steel.
特征
Plate Top chains
这些链可以允许巨额的装载能力，更高的速度，并使用单个驱动器运行更长时间。直线连续843-和1843系列具有滚子基链ANSI 40. 12.7毫米小间距降低了下垂效果并允许使用较小的链轮。按步骤定位推荐它们。直连1864-
and 963-series have a roller base chain ANSI 60. The sideflexing 1874-, 1873-, and 3873-series have a roller base chain, Side Bow ANSI 63 SB. They also very suitable for step by step positioning. Plate Top chains fitted with steel top plates are designed for abrasive and heavy duty or high-temperature conditions. 963- 1873- and 3873-series, with “snap- on” plastic top plates combine the benefits of a plastic conveying surface with those of a precision roller base chain: less slip-stick, high working load and accurate positioning; the replaceable top plates are clipped on to the protruding pins.
Industry applications
对于最苛刻的装瓶和集装箱应用，REXORD桌面和哑光链的性能和生产力没有替代。自1938年以来，随着地面突破的815台桌面不锈钢直连链，REXNORD在饮料和食品输送方面拥有良好的创新，为全球客户提供了激发忠诚和驱动的忠诚和驱动规范。
线效率

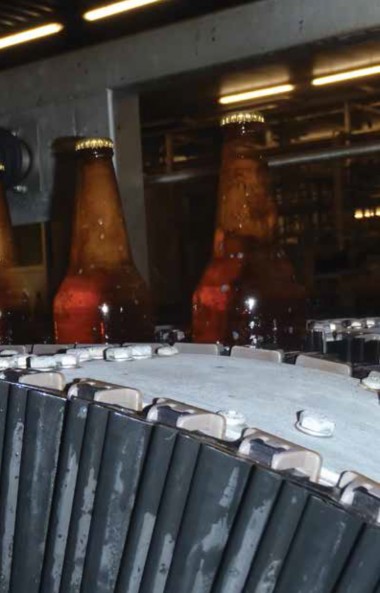

Smooth container flow at high speeds is essential to increase line efficiency and preventing product damage. Especially when moving from multiple to single lanes or the reverse, the gentle slide of bottles across ultra-flat, highly polished stainless steel Rexnord chain can contribute significantly to the quality and efficiency of your beverage production line.
应用程序in beverage
Rexnord产品涵盖各种应用，如：玻璃瓶一般输送单向和返回，宠物瓶和其他塑料容器，罐子，罐头2-和3件式，板条箱，塑料容器，盒子，收缩包装的包装。
Product Portfolio
REXNORD提供了全面的传送带产品，包括
金属桌面链
塑料桌面链包括LBP和Supergrip
塑料哑光链标准，小沥青和重型替代品。
Magnetflex Corner tracks as well as alternatives like Tab and Bevel curves
Machined and moulded sprockets
High performance polymer materials & economic alternatives for less demanding applications
包装和案例输送，可提供线路配置和总系统成本效率的灵活性，可以显着提高填充线干末端的生产率。同时，品牌延伸，创新包装和轻量级包装材料在包装和案例处理中驾驶更苛刻的性能。案例和包装必须保护免受损坏，即使它们迅速超出案例包装器和收缩包装机以及周围的曲线和曲线。
That’s why Rexnord’s case and package handling conveying chains come in our modular small pitch, lightduty 15mm 1500 Series to medium duty 25.4mm pitch 1000 Series to the heavy-duty 1 in pitch 1005 Series in both versions for general conveying and in Super Grip / RubberTop™ versions for metering, incline, decline and braking applications. Furthermore the programm includes a comprehensive portfolio of Sideflexing MatTop chains like the versatile 1200-series MatTop. For accumulating conveyor the LBP (Low Backline Pressure) chains offers a solution to a large variety of applications.
With the Rexnord original Heavy Duty TableTop chains for packaging conveying, no other company provides the breadth of conveying solutions for your case and package handling requirements.
REXNORD产品在其可靠的性能中，虽然是由于其在设计和驱动技术的鲁棒性导致的条件和具有挑战性的应用。因此，在集装箱制作中，REXORD产品通常是真空电梯，高速（磁性）输送机，UV应用，高温应用和检查输送机等应用的首选。
Rexnord Material innovation
Top Rexnord在市场上提供最全面的材料产品组合，以满足广泛的应用要求。玻璃厂和集装箱制造线的几种应用结合了磨料环境，需要平滑容器处理。通常，这些应用不能容易地润滑以中和硬磨粒在环境中的效果。因此，专业材料可以是定制解决方案的一部分。这就是为什么除了WX，HP和PS这样的若干经过验证的专业高性能材料外，REXNORDS材料产品组合现已完成DKA芳纶加固材料。
Processing and packaging food faster with a lower life-cycle cost, less downtime, and reduced product waste requires people, technology, and processes working together to make plant efficiency and productivity the number one goal.
在这方面的传送技术是每种食品加工厂的重要组成部分。随着输送链和部件在加工过程中与食物直接接触，它们强烈促成植物工艺卫生。基于声音卫生设计的易于清洁的输送链有助于更好的食品安全，同时通过更有效的清洁降低成本。此外，链条的可靠性和鲁棒性强烈贡献了加工线的升高时间。
Rexnord food conveying chain technology and food-safe material innovations offer high productivity solutions for food applications throughout each food manufacturing plant. That is why Rexnord’s 510, 1010, 1200 and 2010 Series MatTop® Chain, with their foodgrade design and easy-to-clean features, can be an important part of a robust and effective food safety program in every food processing plant.
Rexnord的汽车解决方案在多年来一直在多个行业传达技术经验。从机械压力机到最终检查输送机，REXNORD为您的应用开发了低维护模块化链解决方案。通过评估您的个人需求和目标，Rexnord的熟练工程师将帮助您获得最低的总体拥有成本（TCO），通过提高运营安全，效率和生产力，产生显着的成本。
REXNORD 6990系列混合哑光链
6990系列混合哑光链（专利申请专利）专为具有高负荷或频繁负载变化的汽车输送机（人员搬运工）。链条中的钢结构会产生刚度和强度，使得链条用于长度超过328英尺（100米）（移动人，车辆或两者组合）的传送带。
Rexnord 3120 Series MatTop Chain
3120系列哑光链主要用于工业型应用：洗车，滑雪处理，人员搬运工，托盘处理和汽车部件处理。坚固的设计采用高强度缩醛材料模塑，采用Rexnord的扭锁销保持系统。
Rexnord 3180 Series MatTop Chain
Rexnord认识到机会在SkID应用中轻松和经济地转换现有技术的重要性，并开发了3180系列哑光链。这些链适用于3.2英寸（81毫米）的滑动输送机，允许在转移到下一个输送机之前机械地对齐。
Successful processing in tunnel pasteurizers, warmers and coolers requires highly reliable, controlled conveying through the tunnel pasteurizer, and smooth container transfers at the infeed and outfeed. To have the highest conveying chain reliability, to eliminate product waste from tipped or broken containers, and to achieve durable conveying performance, Rexnord’s 2000-series USP MatTop chain and the Rexnord’s 9200 series Fortrex Stainless Steel MatTop Chain are specifically designed for superior performance in the demanding environment of pasteurizers, warmers and coolers.
DTS-C动态和外部传输
通过REXNORD专利的DTS-C将特殊的转移梳子和/外送链相结合到主REXNORD Pasteureiler皮带中，以进行全自动清除转移。这消除了死区区域，并确保了连续的产品流消除了背部压力和潜在的产品损坏。
USP超稳定聚丙烯材料
USP材料是一种独特的稳定剂和抗氧化剂的配方，可保护链的聚丙烯材料免受热和/或化学品引起的降解。USP材料在整个连锁生命周期中提高了可靠性，并有助于避免出现未安排停机的风险。
PosiTrack centre guides
专利的集成中心引导凸耳确保了最佳链式跟踪，并使链侧保持触摸隧道结构，并消除了锁定轴上的链轮的需要。
