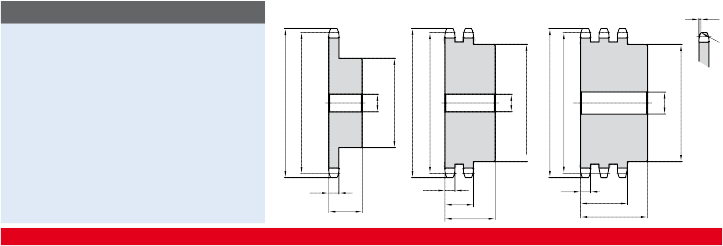

Sprockets tooth widthB115 mm Sprockets tooth widthb114,7 mm Sprockets tooth widthB244 mm Sprockets tooth widthB373,3 mm
CHAIN
Pitch 25,4 mmB1b1b1
Inner width 15,88 mmB2B3
Roller Ø 15,88 mmAAA
SIMPLES DOUBLE TRIPLE
Z 8 |
de |
dp |
PART NUMBER |
dm |
D1 |
A |
kg. |
PART NUMBER |
dm |
D1 |
A |
kg. |
PART NUMBER |
dm |
D1 |
A |
kg. |
9 |
|||||||||||||||||
10 |
95,32 |
82,79 |
11108010 |
55 |
16 |
35 |
0,82 |
11208010 |
56 |
20 |
65 |
1,52 |
|||||
11 |
103,28 |
90,14 |
11108011 |
61 |
16 |
40 |
1,13 |
||||||||||
12 |
111,26 |
98,14 |
11108012 |
69 |
16 |
40 |
1,42 |
11208012 |
72 |
20 |
70 |
2,60 |
11308012 |
72 |
25 |
100 |
3,62 |
13 |
119,26 |
106,12 |
11108013 |
78 |
16 |
40 |
1,77 |
11208013 |
78 |
20 |
70 |
3,22 |
11308013 |
78 |
25 |
100 |
4,45 |
14 |
127,27 |
114,15 |
11108014 |
84 |
16 |
40 |
2,07 |
11208014 |
86 |
20 |
70 |
3,82 |
11308014 |
86 |
25 |
100 |
5,37 |
15 |
135,29 |
122,17 |
11108015 |
92 |
16 |
40 |
2,46 |
11208015 |
94 |
20 |
70 |
4,51 |
11308015 |
94 |
25 |
100 |
6,37 |
16 |
143,32 |
130,20 |
11108016 |
100 |
20 |
45 |
3,13 |
11208016 |
102 |
20 |
70 |
5,17 |
11308016 |
102 |
30 |
100 |
7,45 |
17 |
151,35 |
138,22 |
11108017 |
100 |
20 |
45 |
3,34 |
11208017 |
110 |
20 |
70 |
5,97 |
11308017 |
110 |
30 |
100 |
8,60 |
18 |
159,39 |
146,28 |
11108018 |
100 |
20 |
45 |
3,55 |
11208018 |
118 |
20 |
70 |
6,84 |
11308018 |
118 |
30 |
100 |
9,84 |
19 |
167,44 |
154,33 |
11108019 |
100 |
20 |
45 |
3,78 |
11208019 |
126 |
20 |
70 |
7,75 |
11308019 |
126 |
30 |
100 |
11,16 |
20 |
175,49 |
162,38 |
11108020 |
100 |
20 |
45 |
4,02 |
11208020 |
130 |
20 |
70 |
8,43 |
11308020 |
130 |
30 |
100 |
12,36 |
21 |
183,54 |
170,43 |
11108021 |
110 |
20 |
50 |
5,01 |
11208021 |
130 |
25 |
70 |
9,24 |
|||||
22 |
191,60 |
178,48 |
11108022 |
110 |
20 |
50 |
5,26 |
||||||||||
23 |
199,66 |
156,53 |
11108023 |
110 |
20 |
50 |
5,56 |
||||||||||
24 |
207,72 |
194,59 |
11108024 |
110 |
20 |
50 |
5,85 |
||||||||||
25 |
215,78 |
202,66 |
11108025 |
110 |
20 |
50 |
6,16 |
11208025 |
130 |
25 |
70 |
12,52 |
|||||
26 |
223,84 |
210,72 |
11108026 |
120 |
20 |
50 |
6,96 |
||||||||||
27 |
231年,91年 |
218,79 |
11108027 |
120 |
20 |
50 |
7,29 |
||||||||||
28 |
239,98 |
226,85 |
11108028 |
120 |
20 |
50 |
7,64 |
||||||||||
29 |
|||||||||||||||||
30 |
256,12 |
243,00 |
11108030 |
120 |
20 |
50 |
7,96 |
MATERIALC 45 UNI 7845
CAD drawings available on our site
Quantity, availability and prices on B2B Chiaravalli
26CHAIN SPROCKETSASA 100
r
x 3/4”for roller chains in compliance with DIN 8188 - ISO/R 606 - ANSI B 29.1
