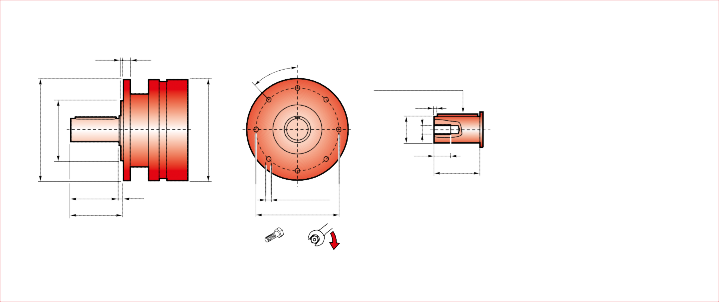

DIMENSIONI CMSCMS DIMENSIONS

CHPL 1000 CMS - Riduttore a vite senza fine CHM in entrataCHPL 1000 CMS - CHM input worm gearboxes

CHPL	CHM 50					CHM 63
	LV	I	H	M	N	LV	I	H	M	N
1001	229.5	50	110	60	80	239	63	135	72	95
1002	277.5					287
1003	325.5					335
1004	373.5					383

LV

CHPL	CHM 75
	LV	I	H	M	N
1001	218	75	161	86	112.5
1002	266
1004	314
1004	362

ØC p. ØAE P6

ØC M N

I

H

ØAE

CHPLB 1000 CMS - Flange motori IECCHPLB1000 CMS - IEC Motor flanges

CHPLB	IEC 63				IEC 71				IEC 80				IEC 90
	L	LP	P	ØD	L	LP	P	ØD	L	LP	P	ØD	L	LP	P	ØD
1002	179	196	36	140	179	196	36	160	179	216	56	200	179	216	56	200
1003	227				227				227				227
1004	275				275				275				275

L

P

LP

ØD

CHPLB	IEC 100				IEC 112				IEC 132
	L	LP	P	ØD	L	LP	P	ØD	L	LP	P	ØD
1002	179	226	66	250	179	226	66	250	179	260	100	300
1003	227				227				227
1004	-				-				-

p. P4

CHPLB 1000 CMS - Alberi maschi entrataCHPL 1000 CMS - Male input shafts

L

LE

ØE

CHPLB	CM42
	L	LT	T	LE	ØE
1002	179	253	93	82	42 h6
1003	227
1004	275

LT

p.

EP7

B6CHPL/CHPLB 1000 CMC

CHPL/CHPLB1000
