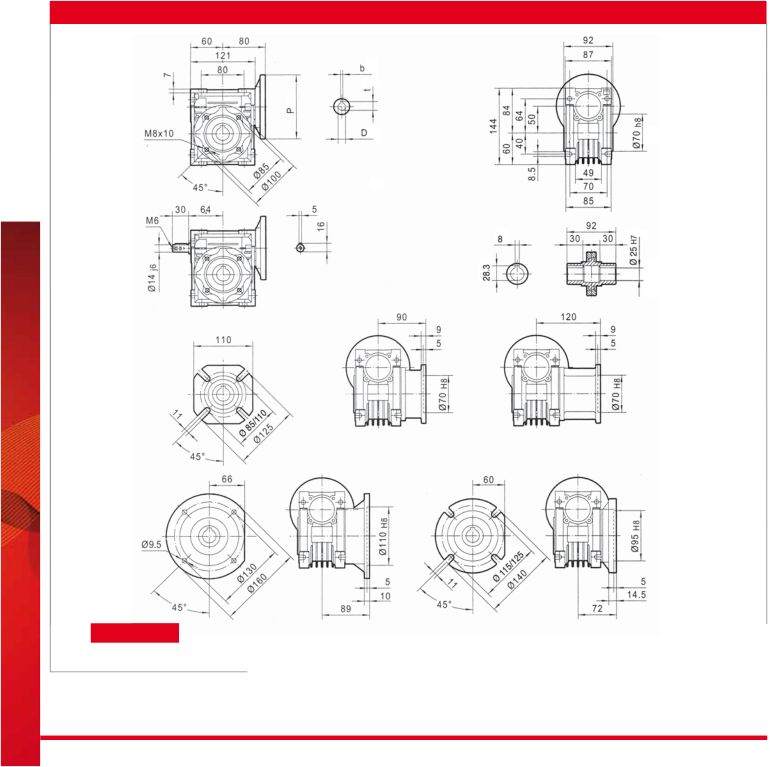

E

FA

FB

FAFB

					FC
PAM IEC	P	DE8	b	t
71B5	160	14	5	16.3
63B5	140	11	4	12.8
56B5	120	9	3	10.4

FCFD

FD

PAM IEC P				DE8		b	t
71B	14		105		4	5	1	6.3
63B	14		90		1	4	1	2.8

TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections

7.5	186.7	0.75	33.3	2.0	80/71	B5/B14
10	140.0	0.75	43.9	1.6	80/71	B5/B14
15	93.3	0.75	62.6	1.2	80/71	B5/B14
20	70.0	0.75	80	0.9	80/71	B5/B14
25	56.0	0.55	70	1.0	80/71	B5/B14
30	46.7	0.55	80	1.0	80/71	B5/B14
40	35.0	0.37	67	1.1	80/71/63	B5/B14*
50	28.0	0.37	78	0.9	71/63	B5/B14*
60	23.3	0.37	87	0.8	71/63	B5/B14*
80	17.5	0.25	70	0.9	71/63	B5/B14*
100	14.0	0.18	59	0.9	71/63	B5/B14*

CHM 050

* 63 only B5
